Off-Grid DC Air Conditioner - DC48

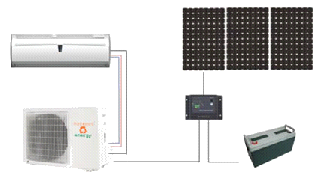

  • Where your location is not connected to the grid, the DC48 Series 100% DC powered air conditioner is your most efficient cooling option. This will be a right choice for telecom or off-grid solar applications, and mobile command posts. You avoid the costly diesel powered generators, fueling, repairs and maintenance. The all-DC DC48 system does not need inverters, and is designed and built with a military-grade, highly efficient hermetically sealed, brushless DC compressor for tough duty and an EER >19.
  • The first of its kind in the market, it is designed to operate reliably and efficiently for many years without maintenance.
DC48

DC4812VRF DC Solar AC Specifications

Power DC 48 VDC DC Power Input 22 Amps
Power DC Range 46-58 Low Voltage Disconnect 46V
Cooling Capacity 1200 Btu/h Operating Range (Cooling/Heating) 20F-122F/ 5F-90F
Max Power Input. Cooling 1010W Outdoor Noise Level 55db
Normal Power Consumption. Cooling <500W Outdoor Fan Motor Panasonic BLDC
Cooling COP 5.08 Outdoor Fan Input 35W DC
EER 17.34 Outdoor Air Flow 1295 CFM
SEER -20 Outdoor Unit Dimension (W*D*H) 30” x 1 1.2” x 23.2”
Heating Capacity 1300 Btu/h Compressor BLDC Rotary
Max Power @ Full Heating Operation 1249W Refrigerant R410A/56.5 oz.
Normal Power Consumption. Heating 836 Pre-charge For Line Set L 23 Ft.
Heating COP 3.04 Max. Line Set Length/Elevation 66 ft. /26 ft.
Indoor Fan Motor Panasonic BLDC Moisture Removal .25 G/h
Indoor Fan Input 30W DC Digital Display F or C
Indoor Fan RPM (Hi/Med/Lo) 1250/900/700 Refrigerant Oil VG74 / 17 oz.
Indoor Air Flow (Hi/Med/Lo) 412/295/235 CFM Design Pressure 550/340 PSIG
Indoor Noise Level (Hi/Med/Lo) 39/29/26 dB Liquid side/ Gas side ¼” / ½”
Indoor Unit Dimension (W*D*H) 36.3”x8.8”x11.5” Cooling Power, COP & EER rated at AHRI 210/20 B
