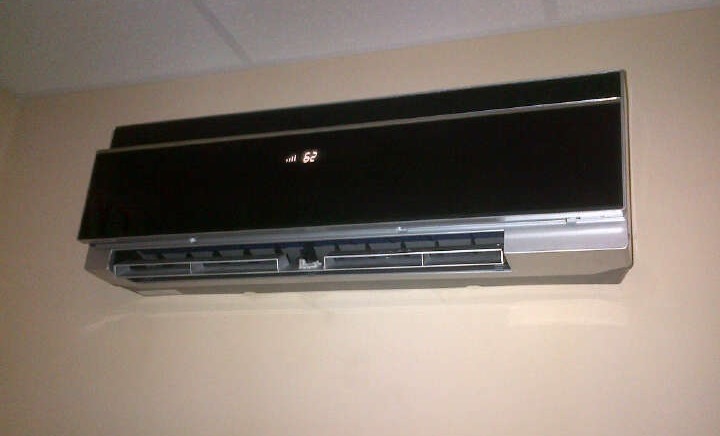

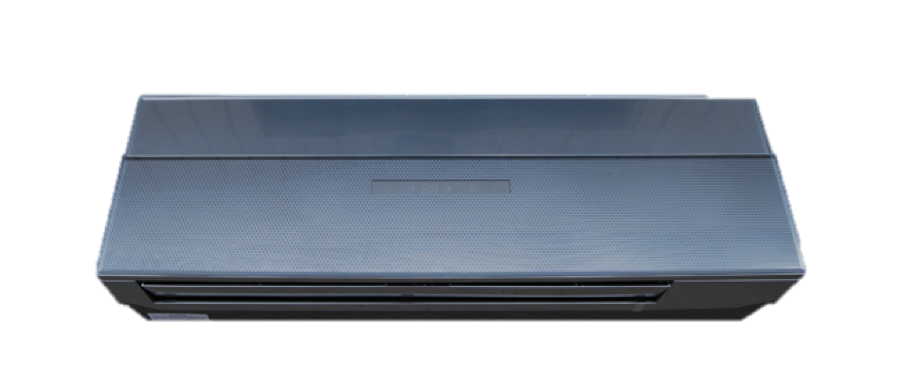

ACDC12 Solar Unit
- Provides Cooling and Heating up to 750 sq.ft.
- Connects directly to Solar Panels
- No Inverter or Controller needed
- Runs on >80% solar DC power during daytime cooling
- Use extra power as required from PHCN or your generator
- Remote Controlled

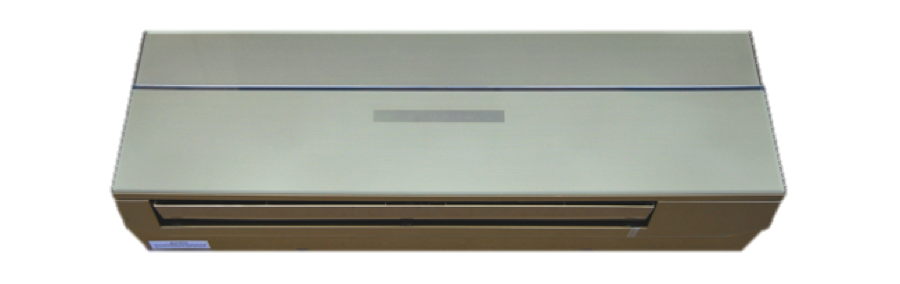

- Black, Silver and Gold colours for indoor units
- Easy installation and save energy all year.
230 watt Polycrystalline Solar Panels
- High efficiency Solar cells from quality silicon material
- High performance and reliability
- Long term output stability
- Sturdy and easy to install
- 25 year manufacturer warranty
Mounting Systems & Accessories
- ACDC12 Stainless steel wall mounting bracket

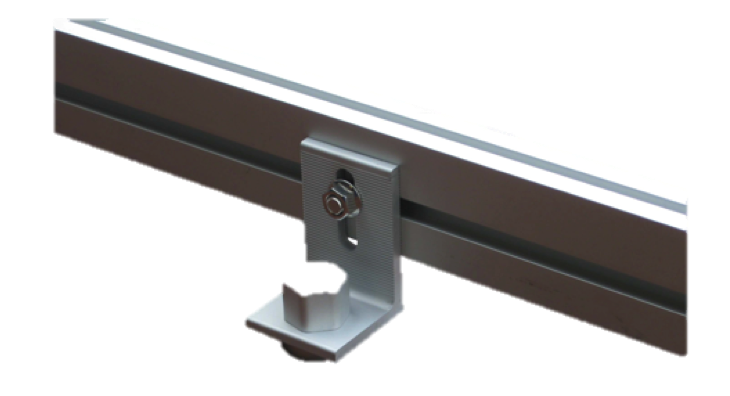

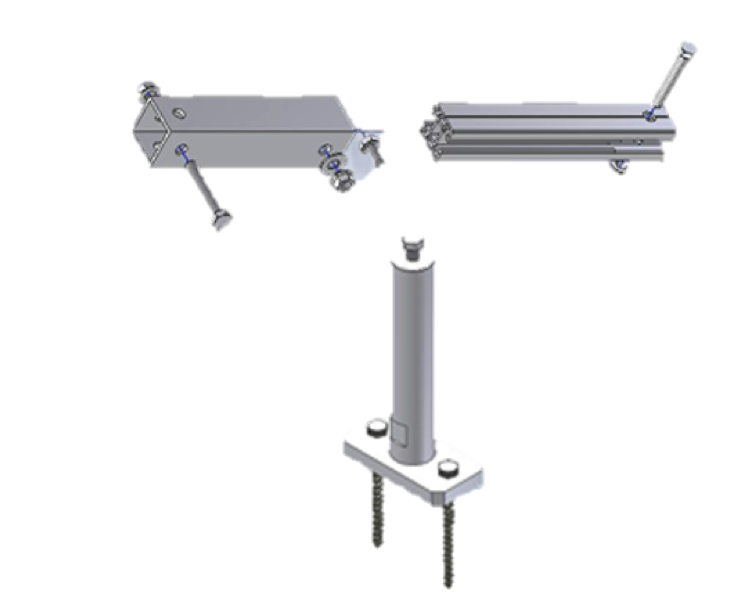

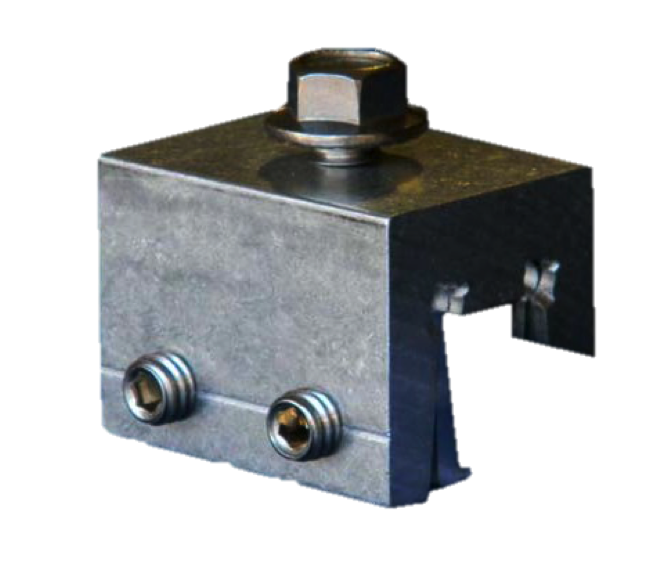

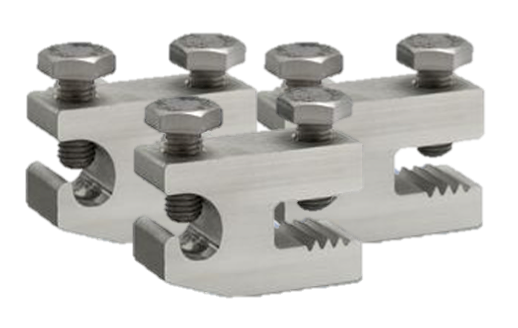

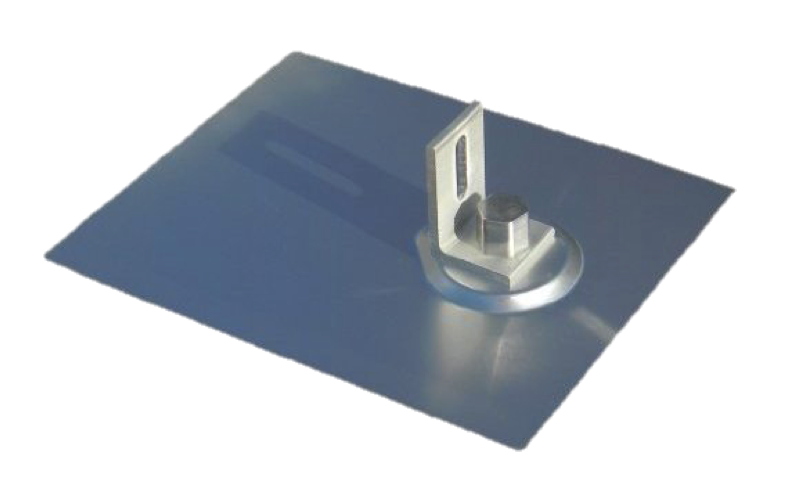

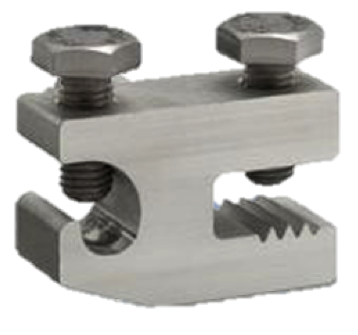

- Mounting kits for panels (Roof, wall and ground available)

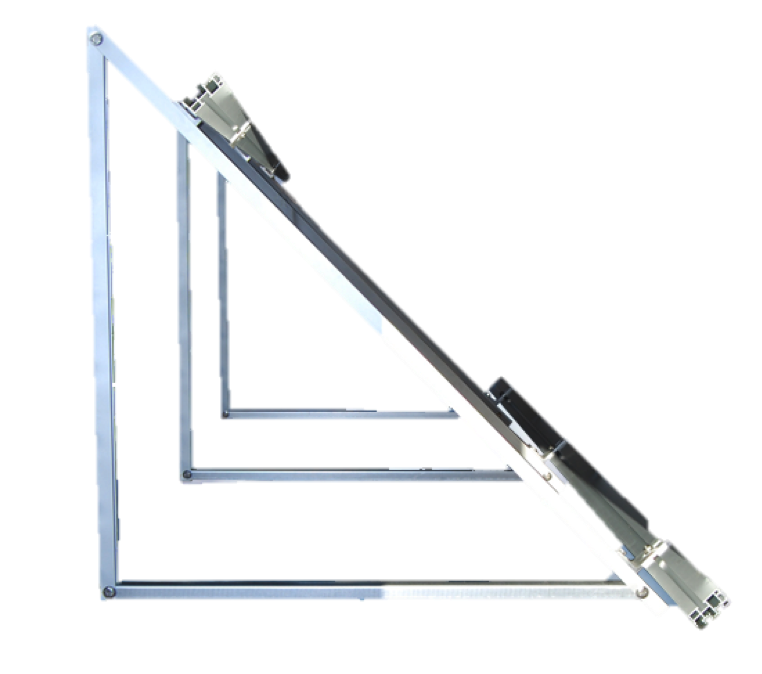

- Mounting frames designed for adjustability
- Heavy duty steel and stainless steel hardware
- 16 Ft. line set

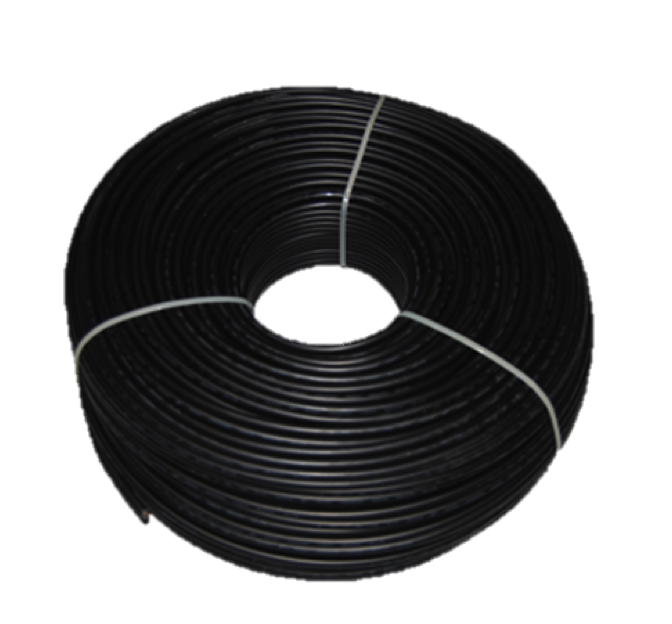

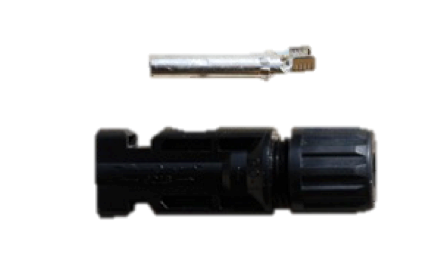

- MC4 cabling and connections
| Power AC |
208/220v 50/60Hz |
Solar Power Input (Max) |
700w |
| Power DC |
30 VDC |
Operating Range (cooling/heating) |
20F-122/5F-90F |
| Cooling Capacity |
11000 Btu/h |
Outdoor Noise Level |
55db |
| Power Input @ Full Cooling Operation |
920W |
Outdoor Fan Motor |
Panasonic DC |
| Avg. Power Consumption, Cooling |
705W |
Outdoor Fan Input |
35W DC |
| Cooling COP |
3.5 |
Outdoor Air Flow |
1295 CFM |
|
SEER
|
20 /35
|
Outdoor Unit Dimension (W*D*H*)
|
30” x 11.2” x 23.2” |
| Heating Capacity |
1200 Btu/h |
Compressor |
BLDC DC Inverter (Rotary) |
| Power Input @ Full Heating Operation |
1025W |
Refrigerant |
R410A / 46oz |
| Avg. Power Consumption, Heating |
836 |
Line Set |
3M |
| Heating COP |
3.5 |
Max. Lineset Length / Elevation |
65ft. / 26ft. |
| HSPF |
10.1 |
Moisture Removal |
.35 G/h |
| Indoor Fan Motor |
Panasonic DC |
Rated Current (RLA) |
5.3A |
| Indoor Fan Input |
20W DC |
Locked Rotor Amp (RLA) |
10A |
| Indoor Fan RPM (Hi/Med/Lo) |
1250/900/700 |
Refrigerant Oil |
VG74 / 17 oz. |
| Indoor Air Flow (Hi/Med/Lo) |
412/295/235 |
CFM Design Pressure |
550/340 PSIG |
| Indoor Noise Level (Hi/Med/Lo) |
39/29/26 dB |
Liquid side/ Gas side |
¼” / ½” |
| Indoor Unit Dimensions (W*D*H*) |
35.5” x 6.5” x 11.2” |
DC Connection / Wire |
MC4 / AWG 14 |
...Information coming soon

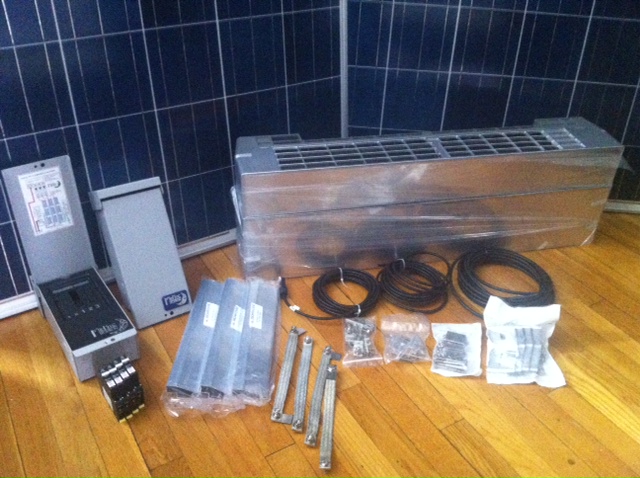

Packages
